Pyreverse analyses Python code and extracts UML class diagrams and package depenndencies. Since september 2008 it has been integrated with Pylint (0.15).
Introduction
- Pyreverse builds a diagram representation of the source code with:
- class attributes, if possible with their type
- class methods
- inheritance links between classes
- association links between classes
- representation of Exceptions and Interfaces
Generation of UML diagrams with Pyreverse
The command pyreverse generates the diagrams in all formats that graphviz/dot knows, or in VCG :
The following command shows what dot knows:
$ dot -Txxx Format: "xxx" not recognized. Use one of: canon cmap cmapx cmapx_np dia dot eps fig gd gd2 gif hpgl imap imap_np ismap jpe jpeg jpg mif mp pcl pdf pic plain plain-ext png ps ps2 svg svgz tk vml vmlz vrml vtx wbmp xdot xlib
pyreverse creates by default two diagrams:
$ pyreverse -o png -p Pyreverse pylint/pyreverse/ [...] creating diagram packages_Pyreverse.png creating diagram classes_Pyreverse.png
- -o : sets the output format
- -p name : yields the output files packages_name.png and classes_name.png

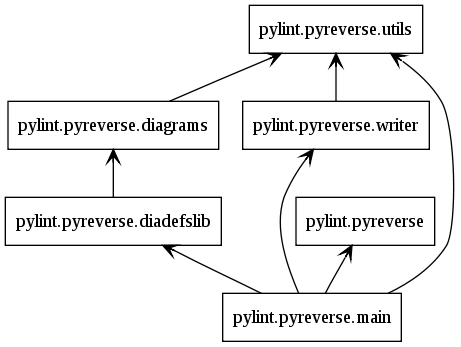

![[image : packages_Pyreverse.png]](./css/packages_Pyreverse.png)
![[image : classes_Pyreverse.png]](./css/classes_Pyreverse.png)
Options
One can modify the output with following options:
-a N, -A depth of research for ancestors -s N, -S depth of research for associated classes -A, -S all ancestors, resp. all associated -m[yn] add or remove the module name -f MOD filter the attributes : PUB_ONLY/SPECIAL/OTHER/ALL -k show only the classes (no attributes and methods) -b show 'builtin' objects
Examples:
General Vue on a Module
pyreverse -ASmy -k -o png pyreverse/main.py -p Main
With these options you can have a quick vue of the dependencies without
being lost in endless lists of methods and attributes.
Detailed Vue on a Module
pyreverse -c PyreverseCommand -a1 -s1 -f ALL -o png pyreverse/main.py
Show all methods and attributes of the class (-f ALL).
By default, the class diagram option -c uses the options
-A, -S, -my, but here we desactivate them
to get a reasonably small image.
Configuration File
You can put some options into the file ".pyreverserc" in your home directory.
Exemple:
--filter-mode=PUB_ONLY --ignore doc --ignore test
This will exclude documentation and test files in the doc and test
directories. Also, we will see only "public" methods.
blog entry of
Comments
In this post they show how to have a beautifull svg (one dot/graphviz output) with shades using xsl.
The second sentence in the first paragraph says that it's already integrated with Pylint >0.15 .
So the download link could be: ./diagrams/project/pylint
However you can do it with 'easy_install pylint' if you have setuptools installed, link: http://lmgtfy.com/?q=setuptools
easy_install has the advantage of taking care of the package dependencies for you which is great help.
For easy_install to work on windows, you need to set your path manually to include c:\python\scripts (substitute c:\python with your python installation path).
pyreverse needs graphviz/dot what you can get at: http://www.graphviz.org/Download..php (for real)
On windows, you may need to adjust the path for this too, but in many cases only a restart after installation will do. Other times do a search for dot.exe and add the directory containing it to your path.
I hope I made this article more useful for those who found it useless previously.
Great scripts been playing around today, one question has anyone got a config.bat file example so I do not need to call pyreverse by command line?? Probably simple to those in the know! Thanks, Alan
images on this page are not found - can be be made available again?
